BSS-Odoo Integration

Design Principle: Odoo handles all things commercial.

Overview

This document defines the complete integration pattern between ABS and Odoo, covering: 1. Transactional Service Events - One-time sales/swaps via sale.order 2. Subscription Billing - Recurring billing via sale.subscription 3. Payment QR Flow - QR-based payment processing

Where this workflow mentions OVApp or attendant-facing frontend behavior, that same application surface may be the Portal App (PA) in SA-governed deployments. PA is the SA-governed portal form of OVApp, not a separate application.

Core Principle: Zero custom Odoo fields—semantic mapping using native Odoo models only.

Part 1: Transactional Service Events

Scope

Battery swaps, vehicle sales, accessory purchases, service activations—any point-of-sale transaction.

Core Mapping

Component Term Odoo Model ID Mapping
ABS service_event - service_event_id
Odoo Order/Quotation sale.order sale.order.id

Key: service_event_id = sale.order.id

State Lifecycle

ABS Event State Odoo State (sale.order.state) Description
open draft or sent Service in progress; awaiting payment
paid sale Payment confirmed via MoMo validation
cancelled cancel Event terminated or abandoned

Odoo persists orders from creation, enabling session resume after disruptions.

Why sale.order as Service Event

Pre-Payment Persistence: - Order exists before payment - Supports customer negotiation, device crashes, network disruptions, MoMo delays

Mixed Line Items: - Goods: Motorcycle, accessories, spare parts - Services: Subscription activation, swap fee, energy fee, penalties - Bundles: Vehicle + subscription + accessories

Architecture Benefits: - Native Odoo workflows—no custom sales logic - Scalable for multi-line transactions - Standard financial reporting

Payment Validation Flow

  1. Order Creation: ABS initiates service_event → Odoo creates sale.order as draft
  2. Customer Payment: Customer pays via MoMo to company collection account
  3. Transaction Capture: Rep enters MoMo transaction ID in ABS
  4. Validation Request: ABS calls Odoo ValidatePayment API
  5. Payload: {service_event_id, payment_tx_id, expected_amount}
  6. Payment Matching: Odoo searches MoMo records by transaction_id + amount
  7. On match → sets sale.order.state = sale
  8. Event Confirmation: Odoo returns {paid: true, order_id, payment_date}

Responsibility Matrix

Capability ABS Odoo
Event Initiation Initiates service session, collects data Creates sale.order in draft
Order Persistence Holds service_event_id reference Persists sale.order across disruptions
Payment Validation Sends validation request Matches payment records; confirms order state
Service Continuation Proceeds only after confirmation Provides definitive paid/unpaid status
Financial Reporting No accounting responsibilities Full reporting, inventory, pricing, taxes

Part 2: Subscription Billing

Scope

Monthly/periodic subscription billing, recurring invoices, payment synchronization.

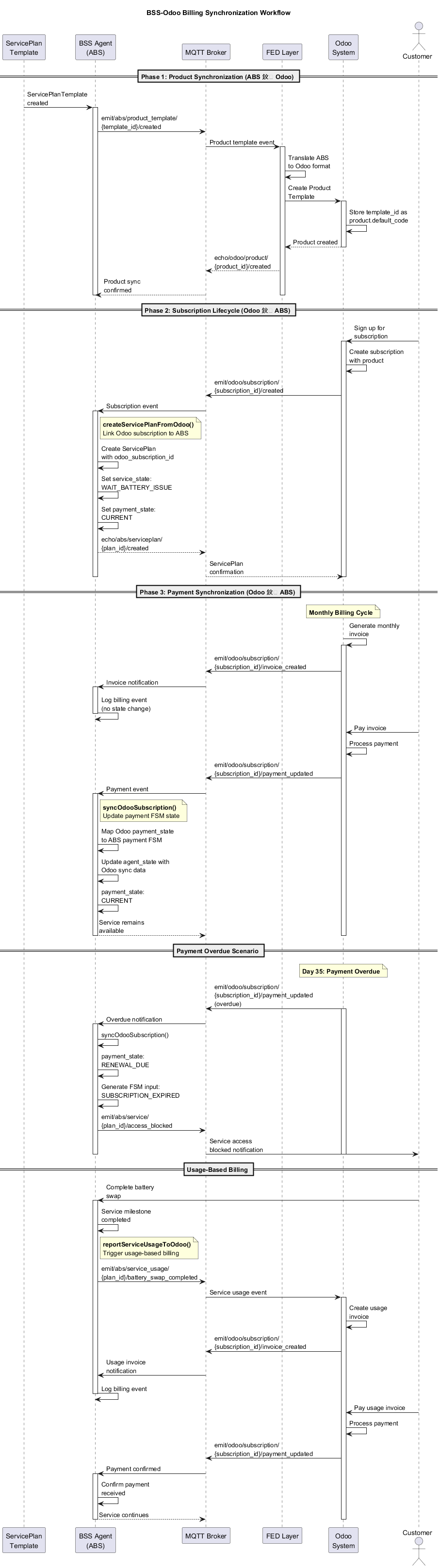

Workflow Diagram

BSS-Odoo Billing Synchronization Workflow

Three billing synchronization phases: Product Synchronization (ABS → Odoo), Subscription Lifecycle (Odoo → ABS), Payment Synchronization (bidirectional).

Entity Relationship

  • ABS ServicePlanTemplate ≡ Odoo Product Template (catalog level)
  • ABS ServicePlan ≡ Odoo Subscription (customer instance level)

Three-Phase Integration

Phase 1: Product Synchronization (ABS → Odoo)

ABS ServicePlanTemplate Created
  ↓ MQTT: emit/abs/product_template/{template_id}/created
    ↓ FED Layer Translation
      ↓ Odoo: Create Product Template
        ↓ Store: template_id as product.default_code

Semantic Field Mappings: - template_id → product.template.default_code (linking) - name → product.template.name - description → product.template.description_sale - billing_currency → product.template.currency_id - status → product.template.active - CommonTerms.monthly_fee → product.list_price - CommonTerms.billing_cycle → recurring_rule_type

Product Naming: [service]-[duration]-[location] (e.g., BSS-Monthly-Nairobi)

Phase 2: Subscription Lifecycle (Odoo → ABS)

Odoo Subscription Created
  ↓ MQTT: emit/odoo/subscription/{subscription_id}/created
    ↓ ABS MQTT Listener
      ↓ BSS Agent: createServicePlanFromOdoo()
        ↓ ServicePlan created with odoo_subscription_id link

ServicePlan Creation:

const servicePlan = {
  customer_id: payload.partner_id,
  template_id: payload.template_id,
  plan_state: {
    status: 'ACTIVE',
    agent_state: {
      odoo_subscription_id: payload.subscription_id,
      odoo_subscription_state: payload.state,
      odoo_last_sync_at: timestamp
    }
  },
  service_state: 'WAIT_BATTERY_ISSUE',
  payment_state: 'CURRENT'
};

Phase 3: Payment Synchronization (Odoo → ABS)

Odoo Payment Event
  ↓ MQTT: emit/odoo/subscription/{subscription_id}/payment_updated
    ↓ ABS MQTT Listener
      ↓ BSS Agent: syncOdooSubscription()
        ↓ Update payment_state FSM

State Mappings:

Subscription States: | Odoo State | ABS Service State | Description | |------------|------------------|-------------| | draft | SERVICE_INITIAL | Not started | | in_progress | SERVICE_ACTIVE | Active | | to_renew | SERVICE_RENEWAL_DUE | Renewal period | | closed | SERVICE_CLOSED | Ended | | cancel | SERVICE_CANCELLED | Cancelled |

Payment States: | Odoo Payment State | ABS Payment FSM | FSM Input | |-------------------|-----------------|-----------| | not_paid | RENEWAL_DUE | SUBSCRIPTION_EXPIRED | | in_payment | PAYMENT_PROCESSING | (monitoring) | | paid | CURRENT | RENEWAL_PAID | | partial | RENEWAL_DUE | (grace period) | | reversed | PAYMENT_REVERSED | PAYMENT_ERROR | | cancel | PAYMENT_CANCELLED | SUBSCRIPTION_EXPIRED |

BSS Agent Integration Methods

1. syncOdooSubscription() - Purpose: Sync ABS payment-cycle FSM with Odoo billing events - Input: {subscription_id, payment_state, subscription_state, invoice_id} - Output: Updated agent_state, FSM inputs generated

2. checkOdooPaymentStatus() - Purpose: Query current payment status for service availability - Returns: Payment validation signals

3. reportServiceUsageToOdoo() - Purpose: Report service milestones to trigger usage-based billing - Events: Battery swap completion, quota exhaustion, service termination

Zero Custom Fields Approach

Linking Mechanism: - Product Level: ABS template_id → Odoo product.default_code - Subscription Level: Odoo subscription.id → ABS agent_state.odoo_subscription_id - No Custom Odoo Fields: Zero Odoo data model modifications

BSSAgentState Structure:

interface BSSAgentState {
  // Existing BSS fields
  agent_version: string;
  swaps_today: number;
  execution_count: number;

  // Odoo integration (domain isolation)
  odoo_subscription_id: number | null;
  odoo_last_sync_at: string | null;
  odoo_payment_state: string | null;
  odoo_subscription_state: string | null;
  odoo_payment_method: string | null;
  odoo_currency_id: string | null;
}

Benefits: - No schema pollution—core ServicePlan unchanged - Agent-specific—only BSS agent handles Odoo - Domain isolation—Odoo concepts confined to BSS domain

Part 3: Payment QR Flow

Scope

QR-based payment processing for quota top-ups during battery swaps.

Key Principle: ABS is the source of truth for service/payment event history. Odoo consumes events for CRM enrichment.

QR Code Structure

When quota is exhausted, attendant app displays QR code containing Service Event + Payment Event data.

QR Code JSON Payload:

{
  "qr_type": "abs_payment_request",
  "version": "1.0",

  "service_event": {
    "event_id": "SE-12345",
    "event_type": "BATTERY_SWAP",
    "timestamp": "2025-01-15T10:25:00Z",
    "plan_id": "bss-plan-weekly-freedom-nairobi-v2-plan1",
    "customer_id": "CUST-001",
    "attendant_id": "ATT-001",
    "station_id": "STATION_XYZ",
    "batteries": {
      "returned": {"id": "BAT-12345", "kwh": 4.8},
      "issued": {"id": "BAT-67890", "kwh": 30.4},
      "net_kwh_delivered": 25.6
    },
    "quota_consumption": {
      "swap_count": 1,
      "electricity_kwh": 25.6
    }
  },

  "payment_event": {
    "event_id": "PE-78910",
    "event_type": "TOPUP_PAYMENT",
    "timestamp": "2025-01-15T10:25:00Z",
    "amount": 15.00,
    "currency": "USD",
    "merchant_station": "STATION_XYZ",
    "service_description": "Battery Swap + Electricity Top-up",
    "quota_deficit_kwh": 15.6,
    "linked_service_event_id": "SE-12345"
  },

  "abs_metadata": {
    "abs_version": "2.0.0",
    "correlation_id": "TXN-12345",
    "callback_url": "mqtt://abs-platform/payment/confirm/TXN-12345"
  }
}

Payment Workflow

Attendant scans outgoing battery
  ↓ ABS calculates quota (remaining < net)
    ↓ ABS generates Service Event + Payment Event
      ↓ Attendant app displays QR code
        ↓ Rider scans QR with rider app
          ↓ Odoo opens payment page (pre-filled)
            ↓ Rider completes payment
              ↓ Odoo updates CRM from events
                ↓ Odoo sends payment confirmation (MQTT)
                  ↓ ABS notifies attendant app
                    ↓ Attendant hands battery to rider
                      ↓ ABS persists events to database
                        ↓ ABS updates quotas & FSM states

Event Persistence

ABS Database (Conceptual):

-- Service Events
CREATE TABLE service_events (
  event_id VARCHAR PRIMARY KEY,
  event_type VARCHAR NOT NULL,
  timestamp TIMESTAMP NOT NULL,
  plan_id VARCHAR NOT NULL,
  customer_id VARCHAR NOT NULL,
  attendant_id VARCHAR,
  station_id VARCHAR,
  battery_returned_id VARCHAR,
  battery_issued_id VARCHAR,
  net_kwh_delivered DECIMAL(10,1),
  swap_count_consumed INT,
  electricity_kwh_consumed DECIMAL(10,1)
);

-- Payment Events
CREATE TABLE payment_events (
  event_id VARCHAR PRIMARY KEY,
  event_type VARCHAR NOT NULL,
  timestamp TIMESTAMP NOT NULL,
  plan_id VARCHAR NOT NULL,
  amount DECIMAL(10,2),
  currency VARCHAR(3),
  merchant_station VARCHAR,
  quota_deficit_kwh DECIMAL(10,1),
  linked_service_event_id VARCHAR REFERENCES service_events(event_id),
  odoo_receipt_id VARCHAR
);

Data Ownership

Data Type Owner Consumer Purpose
Service Events ABS Odoo Service history, customer transparency
Payment Events ABS Odoo Payment history, reconciliation
Payment Processing Odoo ABS Payment confirmation, receipt ID
Customer CRM Odoo ABS Customer details, subscription status
ServicePlan State ABS Odoo Quota status, service availability

Payment Confirmation (MQTT)

Topic: mqtt://abs-platform/payment/confirm/{correlation_id}

Payload:

{
  "correlation_id": "TXN-12345",
  "payment_event_id": "PE-78910",
  "odoo_receipt_id": "PAY-78910",
  "payment_status": "SUCCESS",
  "payment_method": "MOBILE_MONEY",
  "payment_timestamp": "2025-01-15T10:24:30Z"
}

Error Handling

Payment Timeout: - Attendant app displays "Payment Timeout" - Can retry with new QR or cancel service - Events not persisted until payment confirmed

Payment Failure: - Odoo sends failure notification to ABS - Attendant app displays "Payment Declined - Retry?" - Events not persisted until successful payment

Duplicate Payment: - ABS checks correlation_id + payment_event_id uniqueness - Duplicate flagged for refund in Odoo CRM - Only one Payment Event persisted per Service Event

MQTT Topic Patterns

ABS → Odoo (Service Events)

  • emit/abs/product_template/{template_id}/created
  • emit/abs/service_usage/{plan_id}/battery_swap_completed
  • emit/abs/service_usage/{plan_id}/service_terminated

Odoo → ABS (Billing Events)

  • emit/odoo/subscription/{subscription_id}/created
  • emit/odoo/subscription/{subscription_id}/payment_updated
  • emit/odoo/subscription/{subscription_id}/state_changed
  • emit/odoo/subscription/{subscription_id}/invoice_created

Payment Confirmations (Bidirectional)

  • mqtt://abs-platform/payment/confirm/{correlation_id} (Odoo → ABS)

Integration Benefits

No Odoo Customization

  • Zero custom fields added to Odoo models
  • Standard Odoo workflow preserved
  • Upgrade compatibility maintained
  • Minimal configuration required

Clean Architecture

  • ABS leads product definition—business logic ownership
  • Odoo leads customer relationships—CRM ownership
  • MQTT-based synchronization—real-time updates
  • Semantic field mapping—no data structure changes

Domain Isolation

  • Core ServicePlan: Completely unchanged
  • BSS agent_state: Contains all Odoo integration data
  • Other agents: Unaffected by Odoo integration
  • Schema purity: No Odoo concepts leak into core ABS

Implementation Benefits

  • Low risk: No Odoo data model changes
  • High reuse: Leverages 95% existing ABS architecture
  • Scalable: Standard MQTT patterns for future integrations
  • Event-driven: Async processing supports resilient operations

Cost Analysis

ABS Changes Required

  • ServicePlan schema: ZERO changes (agent_state JSON already supports)
  • BSS Agent: +3 methods (syncOdooSubscription, checkOdooPaymentStatus, reportServiceUsageToOdoo)
  • BSSAgentState: +6 fields within existing agent_state JSON
  • Core Platform: Completely unchanged

Odoo Changes Required

  • Zero data model changes
  • MQTT publishing for subscription/payment events (standard)
  • Product template creation via API (standard)
  • QR code scanning for payment initiation (standard)

Integration Effort

  • Phase 1: Product template sync (low complexity)
  • Phase 2: Subscription creation sync (medium complexity)
  • Phase 3: Payment synchronization (medium complexity)
  • Phase 4: QR payment flow (medium complexity)
  • Total: 4 phases, incremental deployment possible

Summary

Transactional Events:  service_event ≡ sale.order
Subscription Billing:  ServicePlan ≡ sale.subscription
Payment QR Flow:       ABS source of truth, Odoo consumes events

ABS:   Service orchestration, event persistence
Odoo:  Commercial transactions, payment processing, CRM

Full Odoo-ABS integration achieved with absolute minimal changes to both systems while maintaining clean architectural boundaries and leveraging existing infrastructure.
